立式多級熱水管道離心式循環泵|多級鍋爐給水泵結構圖
時間：2013-1-21 來源：揚子江泵業 瀏覽數：2787
CDL/CDLF立式不銹鋼多級泵是一種多功能產品，可以輸送從自來水到工業液體的各種不同介質，適應于不同溫度、流量和壓力范圍，CDL適用于無腐蝕性液體，CDLF適用于輕度腐蝕性液體。
供水：水廠過濾與輸送、水廠分區送水、主管增壓、高層建筑增壓。
工業增壓：流程水系統、清洗系統、高壓沖洗系統、消防系統。
工業液體輸送：冷卻和空調系統、鍋爐給水和冷凝系統、機床配套、酸和堿。
水處理：超濾系統、反滲透系統、蒸餾系統、分離器、游泳池。
灌溉：農田灌溉、噴灌、滴灌。
運行條件
稀薄、干凈、非易燃易爆并不含固體顆�；蚶w維的液體。
液體溫度：常溫型 -15℃至+70℃ 熱水型 +70℃至+120℃
環境溫度：高+40℃
海拔：高1000m
泵
CDLK/CDLKF 為安裝標準電機的非自吸式多級離心泵，電機軸通過泵頭用聯軸器直接與泵軸聯接，泵可根據需要配置智能保護器，對泵干轉、缺相、過載等進行有效保護。為滿足水槽或容器的安裝深度，可安裝空腔體來改變泵本身的長度，不同的級數長度見尺寸和重量表和可供產品范圍表。

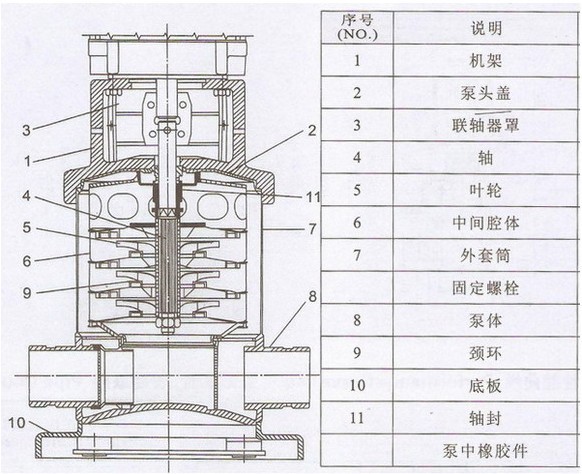

CDLF不銹鋼多級泵解剖圖
電機
電機為全封閉，風冷式二級標準電機。
防護等級：IP55
絕緣等級：F
標準電壓，
50Hz：
1×220－230/240V
3×200/346V
3×220－240/380－415V
3×220－225/380－440V
60Hz：
3×200－230/346－400V
3×220－255/380－440V
3×220－277/380－480V
其他電壓的電機按要求可供。
單相電機從0.37~2.2kW可供。
大環境溫度
當泵在環境溫度大于40℃或海拔大于1000m下運行時，由于空氣密度低冷卻效果差，電機輸出功率P2會有一定降低。泵在上情況下運行電機功率需配大。
CDL輕型立式多級離心泵具體參數如下
| 型號 | 揚程 | 流量(m3/h) | 電機功率(KW) | 轉速(r/min) |
| CDL1-2 | 11.5 | 1 | 0.37 | 2900 |
| CDL1-3 | 17 | 1 | 0.37 | 2900 |
| CDL1-4 | 22.5 | 1 | 0.37 | 2900 |
| CDL1-5 | 28 | 1 | 0.37 | 2900 |
| CDL1-6 | 33.5 | 1 | 0.37 | 2900 |
| CDL1-7 | 39 | 1 | 0.37 | 2900 |
| CDL1-8 | 45 | 1 | 0.55 | 2900 |
| CDL1-9 | 51 | 1 | 0.55 | 2900 |
| CDL1-10 | 57 | 1 | 0.55 | 2900 |
| CDL1-17 | 95 | 1 | 1.1 | 2900 |
| CDL1-19 | 106 | 1 | 1.1 | 2900 |
| CDL1-21 | 117 | 1 | 1.1 | 2900 |
| CDL1-23 | 128 | 1 | 1.1 | 2900 |
| CDL1-25 | 139 | 1 | 1.5 | 2900 |
| CDL1-27 | 150 | 1 | 1.5 | 2900 |
| CDL1-30 | 166 | 1 | 1.5 | 2900 |
| CDL1-33 | 183 | 1 | 2.2 | 2900 |
| CDL1-36 | 200 | 1 | 2.2 | 2900 |
| CDL2-2 | 15 | 2 | 0.37 | 2900 |
| CDL2-3 | 22 | 2 | 0.37 | 2900 |
| CDL2-4 | 30 | 2 | 0.55 | 2900 |
| CDL2-5 | 37 | 2 | 0.55 | 2900 |
| CDL2-6 | 45 | 2 | 0.75 | 2900 |
| CDL2-7 | 52 | 2 | 0.75 | 2900 |
| CDL2-9 | 67 | 2 | 1.1 | 2900 |
| CDL2-11 | 82 | 2 | 1.1 | 2900 |
| CDL2-13 | 98 | 2 | 1.5 | 2900 |
| CDL2-15 | 112 | 2 | 1.5 | 2900 |
| CDL2-18 | 136 | 2 | 2.2 | 2900 |
| CDL2-22 | 165 | 2 | 2.2 | 2900 |
| CDL2-26 | 198 | 2 | 3.0 | 2900 |
| CDL3-2 | 9 | 3 | 0.37 | 2900 |
| CDL3-3 | 14 | 3 | 0.37 | 2900 |
| CDL3-4 | 19 | 3 | 0.37 | 2900 |
| CDL3-5 | 23 | 3 | 0.37 | 2900 |
| CDL3-6 | 28 | 3 | 0.55 | 2900 |
| CDL3-7 | 32 | 3 | 0.55 | 2900 |
| CDL3-8 | 37 | 3 | 0.75 | 2900 |
| CDL3-9 | 42 | 3 | 0.75 | 2900 |
| CDL3-10 | 47 | 3 | 0.75 | 2900 |
| CDL3-11 | 51 | 3 | 1.1 | 2900 |
| CDL3-12 | 55 | 3 | 1.1 | 2900 |
| CDL3-13 | 60 | 3 | 1.1 | 2900 |
| CDL3-15 | 69 | 3 | 1.1 | 2900 |
| CDL3-17 | 79 | 3 | 1.5 | 2900 |
| CDL3-19 | 88 | 3 | 1.5 | 2900 |
| CDL3-21 | 98 | 3 | 2.2 | 2900 |
| CDL3-23 | 107 | 3 | 2.2 | 2900 |
| CDL3-25 | 116 | 3 | 2.2 | 2900 |
| CDL3-27 | 124 | 3 | 2.2 | 2900 |
| CDL3-29 | 133 | 3 | 2.2 | 2900 |
| CDL3-31 | 142 | 3 | 3 | 2900 |
| CDL3-33 | 151 | 3 | 3 | 2900 |
| CDL3-36 | 168 | 3 | 3 | 2900 |
| CDL4-2 | 15 | 4 | 0.37 | 2900 |
| CDL4-3 | 24 | 4 | 0.55 | 2900 |
| CDL4-4 | 32 | 4 | 0.75 | 2900 |
| CDL4-5 | 40 | 4 | 1.1 | 2900 |
| CDL4-6 | 48 | 4 | 1.1 | 2900 |
| CDL4-7 | 56 | 4 | 1.5 | 2900 |
| CDL4-8 | 64 | 4 | 1.5 | 2900 |
| CDL4-10 | 81 | 4 | 2.2 | 2900 |
| CDL4-12 | 95 | 4 | 2.2 | 2900 |
| CDL4-14 | 112 | 4 | 3 | 2900 |
| CDL4-16 | 129 | 4 | 3 | 2900 |
| CDL4-19 | 153 | 4 | 4 | 2900 |
| CDL4-22 | 178 | 4 | 4 | 2900 |
| CDL8-2/1 | 9 | 8 | 0.75 | 2900 |
| CDL8-2 | 18 | 8 | 0.75 | 2900 |
| CDL8-3 | 27 | 8 | 1.1 | 2900 |
| CDL8-4 | 36 | 8 | 1.5 | 2900 |
| CDL8-5 | 45 | 8 | 2.2 | 2900 |
| CDL8-6 | 54 | 8 | 2.2 | 2900 |
| CDL8-8 | 73 | 8 | 3.0 | 2900 |
| CDL8-10 | 92 | 8 | 4.0 | 2900 |
| CDL8-12 | 111 | 8 | 4.0 | 2900 |
| CDL8-14 | 130 | 8 | 5.5 | 2900 |
| CDL8-16 | 148 | 8 | 5.5 | 2900 |
| CDL8-18 | 167 | 8 | 7.5 | 2900 |
| CDL8-20 | 186 | 8 | 7.5 | 2900 |
| CDL12-2 | 20 | 12 | 1.5 | 2900 |
| CDL12-3 | 30 | 12 | 2.2 | 2900 |
| CDL12-4 | 40 | 12 | 3 | 2900 |
| CDL12-5 | 50 | 12 | 3 | 2900 |
| CDL12-6 | 60 | 12 | 4 | 2900 |
| CDL12-7 | 70 | 12 | 5.5 | 2900 |
| CDL12-8 | 80 | 12 | 5.5 | 2900 |
| CDL12-9 | 91 | 12 | 5.5 | 2900 |
| CDL12-10 | 101 | 12 | 7.5 | 2900 |
| CDL12-12 | 121 | 12 | 7.5 | 2900 |
| CDL12-14 | 141 | 12 | 11 | 2900 |
| CDL12-16 | 162 | 12 | 11 | 2900 |
| CDL12-18 | 183 | 12 | 11 | 2900 |
| CDL16-2 | 22 | 16 | 2.2 | 2900 |
| CDL16-3 | 34 | 16 | 3.0 | 2900 |
| CDL16-4 | 46 | 16 | 4.0 | 2900 |
| CDL16-5 | 58 | 16 | 5.5 | 2900 |
| CDL16-6 | 70 | 16 | 5.5 | 2900 |
| CDL16-7 | 82 | 16 | 7.5 | 2900 |
| CDL16-8 | 94 | 16 | 7.5 | 2900 |
| CDL16-10 | 118 | 16 | 11 | 2900 |
| CDL16-12 | 141 | 16 | 11 | 2900 |
| CDL16-14 | 166 | 16 | 15 | 2900 |
| CDL16-16 | 189 | 16 | 15 | 2900 |
| CDL20-1 | 10 | 20 | 1.1 | 2900 |
| CDL20-2 | 23 | 20 | 2.2 | 2900 |
| CDL20-3 | 35 | 20 | 4.0 | 2900 |
| CDL20-4 | 47 | 20 | 5.5 | 2900 |
| CDL20-5 | 58 | 20 | 5.5 | 2900 |
| CDL20-6 | 70 | 20 | 7.5 | 2900 |
| CDL20-7 | 82 | 20 | 7.5 | 2900 |
| CDL20-8 | 94 | 20 | 11 | 2900 |
| CDL20-10 | 118 | 20 | 11 | 2900 |
| CDL20-12 | 142 | 20 | 15 | 2900 |
| CDL20-14 | 166 | 20 | 15 | 2900 |
| CDL20-17 | 202 | 20 | 18.5 | 2900 |
| CDL32-10-1 | 9 | 32 | 1.5 | 2900 |
| CDL32-10 | 13 | 32 | 2.2 | 2900 |
| CDL32-20-2 | 20 | 32 | 3.0 | 2900 |
| CDL32-20 | 27 | 32 | 4.0 | 2900 |
| CDL32-30-2 | 33 | 32 | 5.5 | 2900 |
| CDL32-30 | 40 | 32 | 5.5 | 2900 |
| CDL32-40-2 | 46 | 32 | 7.5 | 2900 |
| CDL32-40 | 53 | 32 | 7.5 | 2900 |
| CDL32-50-2 | 60 | 32 | 11 | 2900 |
| CDL32-50 | 67 | 32 | 11 | 2900 |
| CDL32-60-2 | 74 | 32 | 11 | 2900 |
| CDL32-60 | 81 | 32 | 11 | 2900 |
| CDL32-70-2 | 88 | 32 | 15 | 2900 |
| CDL32-70 | 95 | 32 | 15 | 2900 |
| CDL32-80-2 | 102 | 32 | 15 | 2900 |
| CDL32-80 | 109 | 32 | 15 | 2900 |
| CDL32-90-2 | 117 | 32 | 18.5 | 2900 |
| CDL32-90 | 124 | 32 | 18.5 | 2900 |
| CDL32-100-2 | 131 | 32 | 18.5 | 2900 |
| CDL32-100 | 138 | 32 | 18.5 | 2900 |
| CDL32-110-2 | 146 | 32 | 22 | 2900 |
| CDL32-110 | 153 | 32 | 22 | 2900 |
| CDL32-120-2 | 160 | 32 | 22 | 2900 |
| CDL32-120 | 167 | 32 | 22 | 2900 |
| CDL32-130-2 | 174 | 32 | 30 | 2900 |
| CDL32-130 | 181 | 32 | 30 | 2900 |
| CDL32-140-2 | 189 | 32 | 30 | 2900 |
| CDL32-140 | 196 | 32 | 30 | 2900 |
| CDL42-10-1 | 16 | 42 | 3.0 | 2900 |
| CDL42-10 | 20 | 42 | 4.0 | 2900 |
| CDL42-20-2 | 32 | 42 | 5.5 | 2900 |
| CDL42-20 | 41 | 42 | 7.5 | 2900 |
| CDL42-30-2 | 52 | 42 | 11 | 2900 |
| CDL42-30 | 61 | 42 | 11 | 2900 |
| CDL42-40-2 | 73 | 42 | 15 | 2900 |
| CDL42-40 | 81 | 42 | 15 | 2900 |
| CDL42-50-2 | 93 | 42 | 18.5 | 2900 |
| CDL42-50 | 101 | 42 | 18.5 | 2900 |
| CDL42-60-2 | 113 | 42 | 22 | 2900 |
| CDL42-60 | 122 | 42 | 22 | 2900 |
| CDL42-70-2 | 134 | 42 | 30 | 2900 |
| CDL42-70 | 142 | 42 | 30 | 2900 |
| CDL42-80-2 | 154 | 42 | 30 | 2900 |
| CDL42-80 | 162 | 42 | 30 | 2900 |
| CDL42-90-2 | 174 | 42 | 30 | 2900 |
| CDL42-90 | 183 | 42 | 37 | 2900 |
| CDL42-100-2 | 194 | 42 | 37 | 2900 |
| CDL42-100 | 203 | 42 | 37 | 2900 |
| CDL42-110-2 | 217 | 42 | 45 | 2900 |
| CDL42-110 | 225 | 42 | 45 | 2900 |
| CDL42-120-2 | 238 | 42 | 45 | 2900 |
| CDL42-120 | 247 | 42 | 45 | 2900 |
| CDL42-130-2 | 259 | 42 | 45 | 2900 |
| CDL65-10-1 | 13 | 65 | 4.0 | 2900 |
| CDL65-10 | 20 | 65 | 5.5 | 2900 |
| CDL65-20-2 | 26 | 65 | 7.5 | 2900 |
| CDL65-20-1 | 33 | 65 | 11 | 2900 |
| CDL65-20 | 40 | 65 | 11 | 2900 |
| CDL65-30-2 | 46 | 65 | 15 | 2900 |
| CDL65-30-1 | 53 | 65 | 15 | 2900 |
| CDL65-30 | 60 | 65 | 18.5 | 2900 |
| CDL65-40-2 | 66 | 65 | 18.5 | 2900 |
| CDL65-40-1 | 73 | 65 | 22 | 2900 |
| CDL65-40 | 80 | 65 | 22 | 2900 |
| CDL65-50-2 | 88 | 65 | 30 | 2900 |
| CDL65-50-1 | 95 | 65 | 30 | 2900 |
| CDL65-50 | 102 | 65 | 30 | 2900 |
| CDL65-60-2 | 110 | 65 | 30 | 2900 |
| CDL65-60-1 | 117 | 65 | 37 | 2900 |
| CDL65-60 | 124 | 65 | 37 | 2900 |
| CDL65-70-2 | 132 | 65 | 37 | 2900 |
| CDL65-70-1 | 139 | 65 | 37 | 2900 |
| CDL65-70 | 146 | 65 | 45 | 2900 |
| CDL65-80-2 | 154 | 65 | 45 | 2900 |
| CDL65-80-1 | 161 | 65 | 45 | 2900 |
| CDL85-10-1 | 14 | 85 | 5.5 | 2900 |
| CDL85-10 | 20 | 85 | 7.5 | 2900 |
| CDL85-20-2 | 30 | 85 | 11 | 2900 |
| CDL85-20 | 41 | 85 | 15 | 2900 |
| CDL85-30-2 | 52 | 85 | 18.5 | 2900 |
| CDL85-30 | 64 | 85 | 22 | 2900 |
| CDL85-40-2 | 75 | 85 | 30 | 2900 |
| CDL85-40 | 86 | 85 | 30 | 2900 |
| CDL85-50-2 | 98 | 85 | 37 | 2900 |
| CDL85-50 | 110 | 85 | 37 | 2900 |
| CDL85-60-2 | 122 | 85 | 45 | 2900 |
| CDL85-60 | 134 | 85 | 45 | 2900 |
| CDL120-10 | 18.5 | 120 | 11 | 2950 |
| CDL120-20-1 | 34.5 | 120 | 18.5 | 2950 |
| CDL120-20 | 40 | 120 | 22 | 2950 |
| CDL120-30 | 61 | 120 | 30 | 2950 |
| CDL120-40-1 | 76 | 120 | 37 | 2950 |
| CDL120-50-1 | 97 | 120 | 45 | 2950 |
| CDL120-60-1 | 118 | 120 | 55 | 2950 |
| CDL120-70 | 145 | 120 | 75 | 2950 |
| CDL150-10-1 | 12.5 | 150 | 11 | 2950 |
| CDL150-10 | 18.5 | 150 | 15 | 2950 |
| CDL150-20-1 | 35 | 150 | 22 | 2950 |
| CDL150-30-2 | 49 | 150 | 30 | 2950 |
| CDL150-30 | 63 | 150 | 37 | 2950 |
| CDL150-40-1 | 77 | 150 | 45 | 2950 |
| CDL150-50-2 | 92 | 150 | 55 | 2950 |
| CDL150-60 | 130 | 150 | 75 | 2950 |
